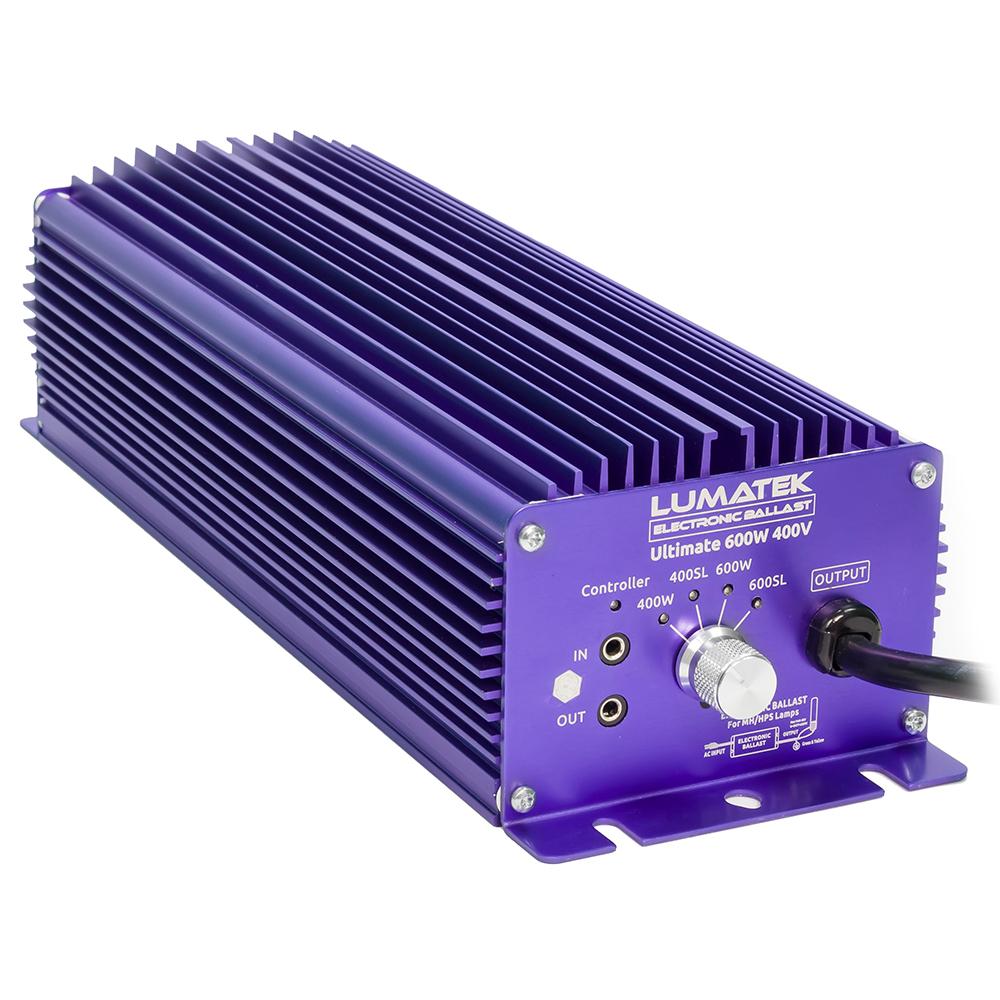

Lumatek Ultimate 400V Controllable Ballasts


Pickup available at Brighton

Usually ready in 24 hours

Lumatek Ultimate 400V Controllable Ballasts



The Lumatek Ultimate Pro 400V ballast has been specifically designed to help the hobby grower access the benefits of using electronics to control and power both 240V MH/HPS and professional 400V HPS horticultural lamps. The Lumatek Ultimate Pro automatically detects the lamp connected and then powers that light. The 400V lamps are superior to the 240V lamps traditionally used in the hobby hydroponics and indoor garden markets due to their increased efficiency and greater PAR spectrum output. Photosynthetic Active Radiation (PAR) refers to the part of the light spectrum that plants actually use to photosynthesize and make energy to grow.

Using microprocessor and software controlled electronics, the Lumatek Ultimate is an ultra-high frequency ballast operating at 120KHz (120,000 cycles per second) for 400V and 90KHz for 240V lamps.

The new addition of Control capability allows you to smartly monitor your room temperatures, light timing, automation, safety control and dimming. By simply connecting the Lumatek Digital Panel (sold separately) into the TRS “Link” port on your controllable ballast.


  • High efficiency, energy-saving
  • Controllable option via remote Lumatek Digital Controller
  • Completely silent and maximum heat dissipation
  • RF shielding
  • LED status indicator
  • Full protection
  • Soft start technology
  • Random start technology
  • Automatic frequency adjustment
  • Re-strike system
  • 5 years warranty
  • CE Certification
  • EMI suppression certified
  • 5 metres Control Link Cable included


  • Input Current Main (A): 2.9
  • Input Power (W): 630
  • Operating Frequency (KHz): 120 (Ultra-High Frequency)
  • Efficiency (%): 95
  • Dimming: 400W – 400WSL – 600W – 600WSL
  • Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectification
  • Weight (Kg): 3.0


  • Input Current Max (A): 4.70A
  • Input power: 1030W
  • Dimming: 600W - 750W – 1000W – 1000W SL
  • Lamp: 600W, 750W & 1000W MH & HPS
  • Operating frequency: high frequency
  • Full circuit protection; open/short, over temperature, over/low voltage, end of lamp life/rectification
  • Weight: 4.9 Kg
